Oil Mist Collectors-Ovgu Extra

OVGU Extra captures, condenses, and filters oil vapors and coolant (boron oil) vapors that accumulate in CNC cabinets in metalworking plants and are released into the working environment when the cabinet is opened, with a 99.97% efficiency rate using a HEPA filter. It effectively removes oil particles from the air that could endanger workplace safety and create slippery surfaces. It cleans the air in your facility and does not require a chimney outlet.

Products

  • Clean and Healthy Working Environment
  • Captures and filters oil mist generated during machining at its source. Protects the health of your employees.
  • Increased Productivity and Quality
  • A cleaner environment means healthier employees and higher production quality.
  • Grinding (Water-based and synthetic emulsions)
  • Turning (Water-based and synthetic emulsions)
  • CNC Milling (Water-based and synthetic emulsions)
  • All Machining Applications
Order Code Product Name Air Flow
101010000152 Ovgu Extra 500  800m³/h
101020000152 Ovgu Extra 1000 1.600m³/h
101030000152 Ovgu Extra 2000 2.200m³/h
101040000152 Ovgu Extra 3000 3.700m³/h

Hepa Filter Technology

It features multi-layered high-efficiency HEPA filter technology with
99.97% filtration efficiency. Even the mallest oil mist particles and
micro-aerosols are captured before they spread into the nvironment.
The filter material has successfully passed compatibility tests with
emulsions and various coolants on the market.

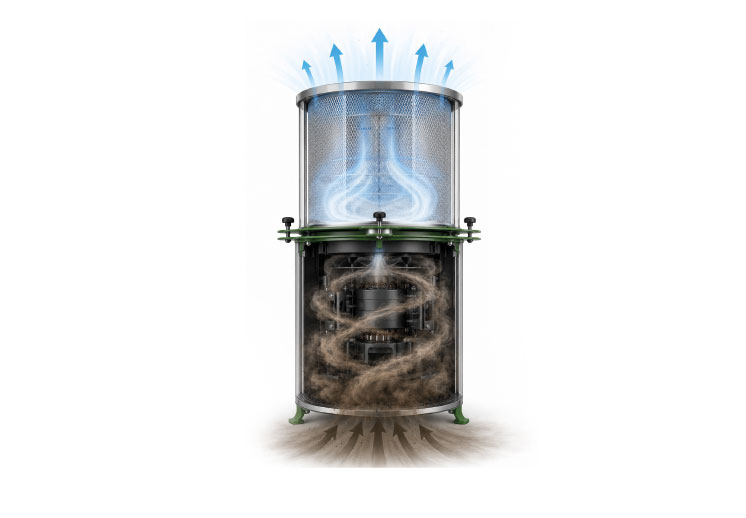

Patented Rotor Assembly

The contaminated air is drawn into the lower front chamber of the
device, where the centrifugal acceleration enerated by the turbine
brings together the atomized oil particles and condenses them back
into liquid form. The condensed liquid oil is recovered back into the
machine via a special drainage line, ensuring a zero-waste cycle.



Plug and Play System

With its compact design suitable for direct benchtop mounting, it
can be installed on any machine tool in inutes. Filters, accessible from
the inside via an opening cover, can be quickly changed or cleaned,
minimizing owntime. With horizontal and vertical entry options, it can
be easily adapted to different machine configurations.
Description Unit Birim OVGU 500 OVGU 1000 OVGU 2000  OVGU 3000
Filter stages - 3 3 3 3
Filter method - 2 2 2 2
Filter surface m² 7  12 14 16
Type of filter - HEPA  HEPA  HEPA  HEPA
Filter material - SENTETİK SENTETİK SENTETİK SENTETİK
Filter efficiency - 99,97% 99,97% 99,97% 99,97%
Filterclass - H13 H13 H13 H13
Filter Cleaning - G4 Pre-Filter G4 Pre-Filter G4 Pre-Filter G4 Pre-Filter
Air Flow m³/h 800 1.600 2.200 3.700
Dimensions (w x d x h) mm  350x880 390x1000 480x1100 510x1200
Weight Kg 18 28 34 42
Motor power kW 0,37 0,55 1,1 2,2
Power supply V-Hz 380-50 380-50 380-50 380-50
Rated current A 5 5 5 5
Noise level dB(A) 70 70 70 70
Fan type - Özel Tasarım Özel Tasarım Özel Tasarım Özel Tasarım
Certificates - CE CE CE CE
Order Code - 101010000152 101020000152 101030000152 101040000152
