Oil Smoke Filtratıon-Oiljet

This advanced filtration unit is engineered to capture oil fumes at the source, which accumulate within CNC abinets utilizing pure cutting oil and are released into the work environment upon opening the cabinet. It purifies the air in your facility by thoroughly separating oil particles from the air, thereby mitigating risks to workplace safety and preventing slipperiness on floors. The oils generated from the condensed smoke are redirected back to the machine.

Products

  • Clean and Healthy Working Environment
  • Captures and filters oil mist generated during machining at its source. Protects the health of your employees.
  • Increased Productivity and Quality
  • A cleaner environment means healthier employees and higher production quality.
  • Grinding (Models that operate with pure cutting oil)
  • Turning (Models that operate with pure cutting oil)
  • CNC Milling (Models that operate with pure cutting oil)
  • All Machines that operate with pure cutting oil
Order Code Product Name Air Flow
102010000152 Oiljet 600 800m³/h
102020000152 Oiljet 1200 1.600m³/h
102030000152 Oiljet 2000 2.200m³/h
102040000152 Oiljet 3000 3.700m³/h

Hepa Filter Technology

It features multi-layered high-efficiency HEPA filter technology with
99.97% filtration efficiency. Even the mallest oil mist particles and
micro-aerosols are captured before they spread into the nvironment.
The filter material has successfully passed compatibility tests with
emulsions and various coolants on the market.

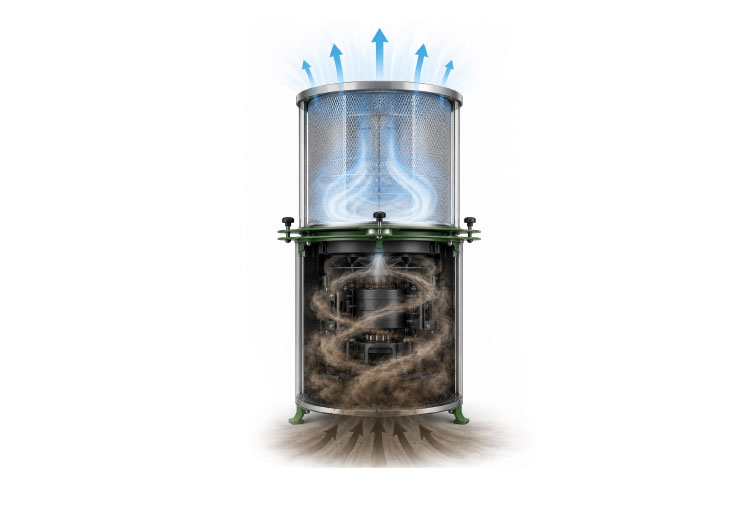

Patented Rotor Assembly

The contaminated air is drawn into the lower front chamber of the
device, where the centrifugal acceleration enerated by the turbine
brings together the atomized oil particles and condenses them back
into liquid form. The condensed liquid oil is recovered back into the
machine via a special drainage line, ensuring a zero-waste cycle.



Plug and Play System

With its compact design suitable for direct benchtop mounting, it
can be installed on any machine tool in inutes. Filters, accessible from
the inside via an opening cover, can be quickly changed or cleaned,
minimizing owntime. With horizontal and vertical entry options, it can
be easily adapted to different machine configurations.
Description Unit Birim OILJET 600 OILJET 1200 OILJET 2000 OILJET 3000
Filter stages - 3 3 3 3
Filter method - 2 2 2 2
Filter surface m² 7  12 14 16
Type of filter - HEPA  HEPA  HEPA  HEPA
Filter material - SENTETİK SENTETİK SENTETİK SENTETİK
Filter efficiency - 99,97% 99,97% 99,97% 99,97%
Filterclass - H13 H13 H13 H13
Filter Cleaning - G4 Pre-Filter G4 Pre-Filter G4 Pre-Filter G4 Pre-Filter
Air Flow m³/h 800 1.600 2.200 3.700
Dimensions (w x d x h) mm  450x900 490x1000 580x1300 610x1300
Weight Kg 28 41 57 62
Motor power kW 0,75 1,5 2,2 3
Power supply V-Hz 380-50 380-50 380-50 380-50
Rated current A 5 5 5 5
Noise level dB(A) 70 70 70 70
Fan type - Özel Tasarım Özel Tasarım Özel Tasarım Özel Tasarım
Certificates - CE CE CE CE
Order Code - 102010000152 102020000152 102030000152 102040000152
